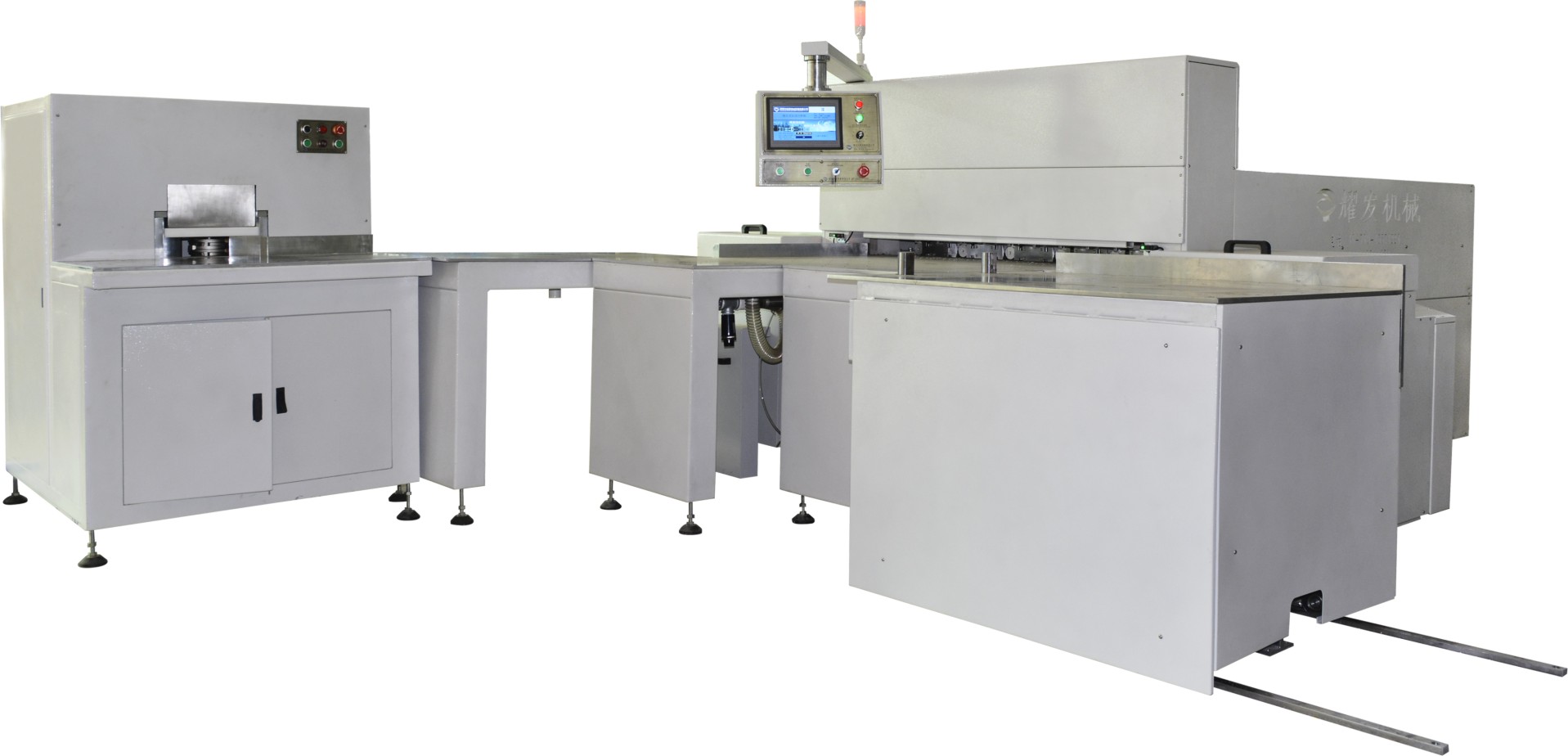

Main technical parameters of equipment
Sawing width: 1500mm
Sawing length: 1500mm
Maximum sawing thickness 50mm
Diameter of main saw blade: Φ 305mm
Shaft diameter of main saw blade: Φ 25.4mm
Rotation speed of main saw blade: 3600-4000 rpm
Main shaft power: 12Kw
Feeding power: 1.5Kw
Cutting speed: 0~10m/min (the cutting speed of circuit board is 4m/min~5m/min)
Saw block power: 3Kw
Moving speed of saw block: 20m/min
Air flotation platform power: 0.75Kw+0.75Kw+3Kw
Total power: 21Kw
Service air pressure: 5-7Kg/cm2
Height of workbench from the ground: 900 ± 30mm
Net weight: 3500Kg
Machine size (L * W * H): 4545 * 3040 * 1570mm
2、 Specifications:
Minimum cutting size: 130mm for the first cutter × 130mm ; Minimum 5mm after the second knife
Maximum cutting size: 1500mm × 1500mm
Maximum cutting height (including upper and lower wood pulp boards): 50mm
3、 Equipment performance
Tolerance of parallel line of the cut plate: ± 0.2mm/m
Diagonal tolerance of the cut sheet: ± 0.25mm/m
Edge/surface quality:
The cutting surface is smooth: there is no scratch, jamming, crushing and other basic problems on the plate surface in normal operation
Other auxiliary devices:
Effective safety protection measures: reduce the risk of scrap of plates during operation
Tool life (the cutting thickness is 50 mm, and it can be grinded once every 2000 meters. The second time is 1800 meters, and it can be grinded 6-8 times)
(The cutting thickness is 30mm. Grind once for 3000m. Grind for 6-8 times for 2700m from the second time)
Cutting loss: tool thickness 2.4mm, loss 2.4mm; Tool thickness 3.0 mm, loss 3.0 (and so on)
Tooth material: diamond,
The equipment is equipped with leakage protection switch
The float design of the worktable prevents the board from scratching
4、 Installation requirements
Space: ≥ 6m × 6m
Power supply: 5 cores × 6mm2 3-phase 380V50Hz
Air pressure: 5-7Kg/cm250L/min
Dust collection pipe diameter: Φ 100 mm each; Φ 75mm two
Static pressure: 500-800mmaq
Air volume:>35-65CMM
5、 Control system
High performance touch screen, clear and reliable, easy to operate
Programmed control: the operation interface is in Chinese/English and easy to operate
Security system: alarm system and emergency stop device.
Group continuous cutting can be set
Save 200 sets of cutting parameters
Automatic oil filling system
